Figure 8


Download original image

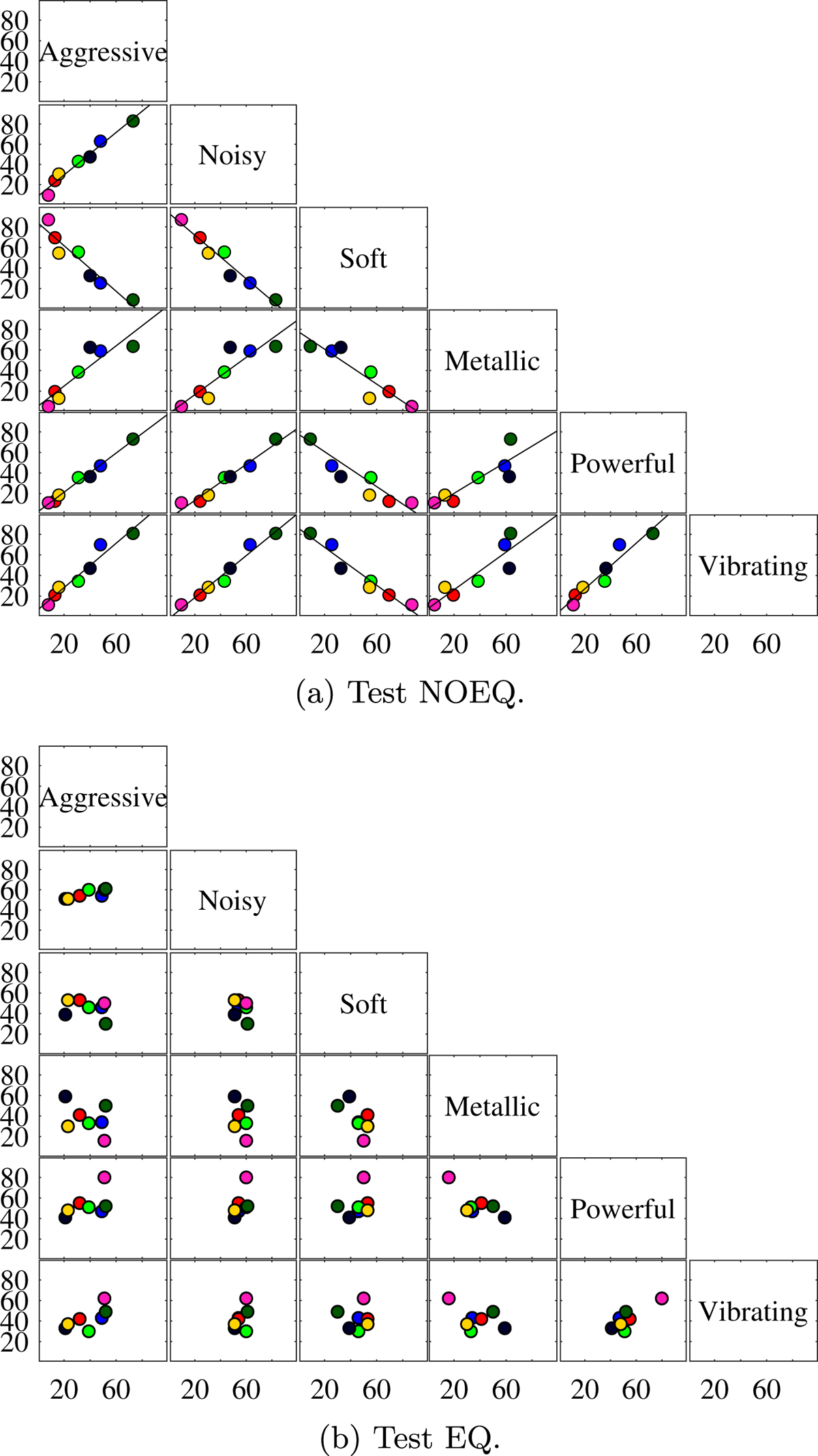

Scatter plots of perceptual attributes for constant-speed condition. The scatter plots correspond to the median scores (% for each attribute) for each of the seven sounds. The variable names displayed along the diagonal of the matrix are also the column names for labeling the x and y axes. For instance, the top left graph is a comparison between Aggressive and Noisy, and so on. Legend: V1, V2, V3, V4, V5, V6, V7. (a) Test NOEQ and (b) Test EQ.
