Metamaterials for Novel Wave Phenomena in Microwaves, Optics, and Mechanics
Open Access

Fig. 1


Download original image

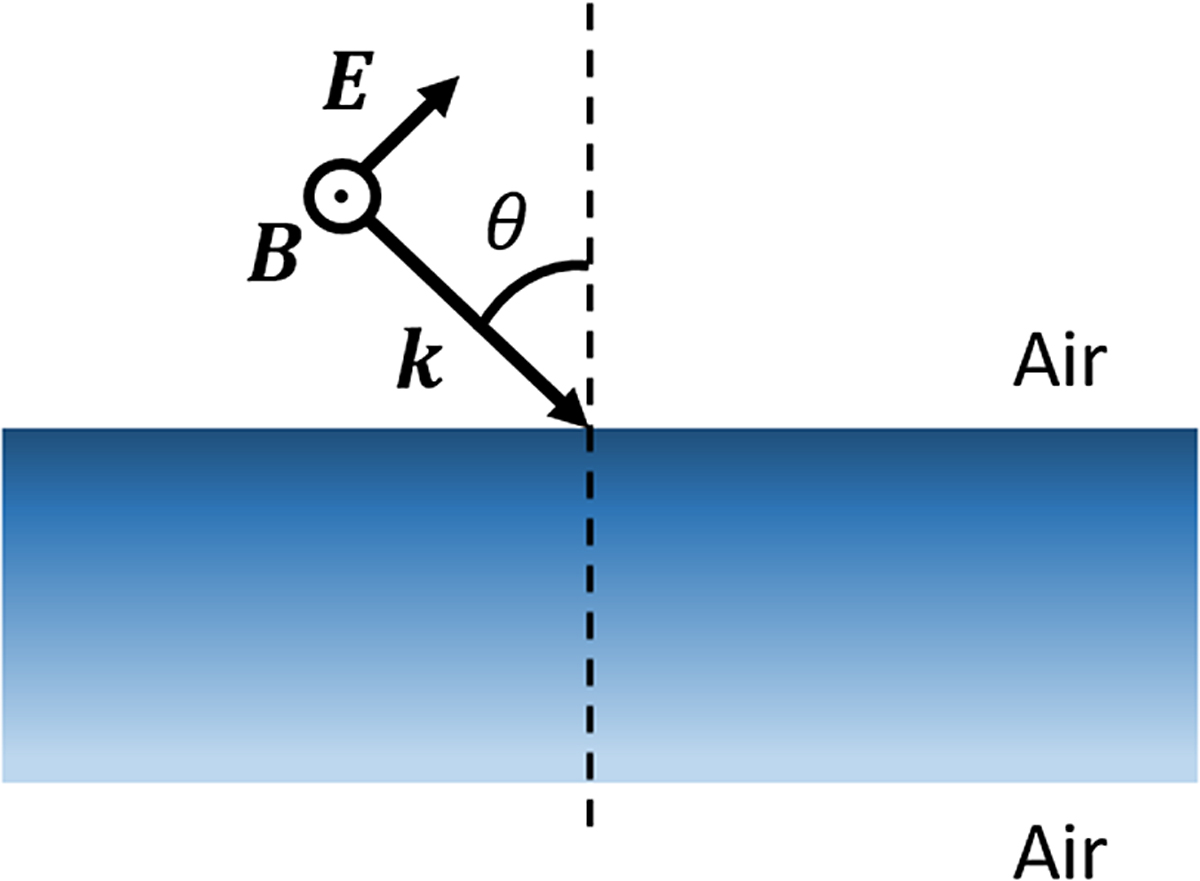

Schematics of the studied geometry: a transverse magnetic mode impinging on a slab of highly doped semiconductor with an angle of incidence θ. The simulated slab is assumed to be in air and 1 μm thick.
