Fig. 1


Download original image

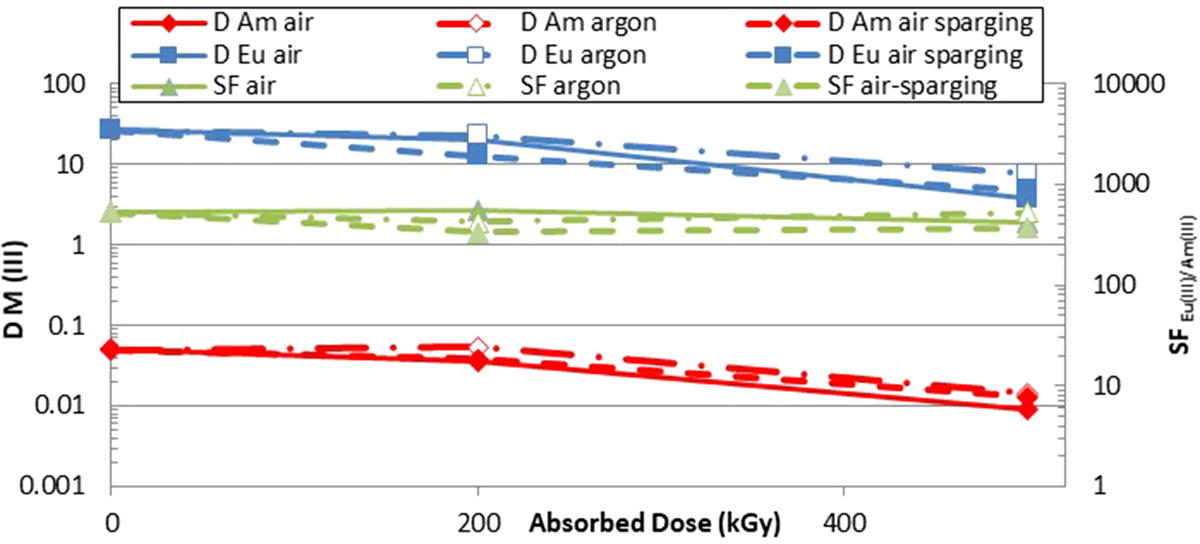

Distribution ratios of Am(III) and Eu(III) as function of dose and the different irradiation conditions of the organic phase: air, Argon and air sparging. Organic phases: fresh or irradiated 0.2 mol/L TODGA in OK. Aqueous phases: fresh 18 mmol SO3-Ph-BTP in 0.5 mol/L HNO3. Spiked with 241Am(III) and 152Eu(III) (1 kBq/mL each).
