Fig. 2


Download original image

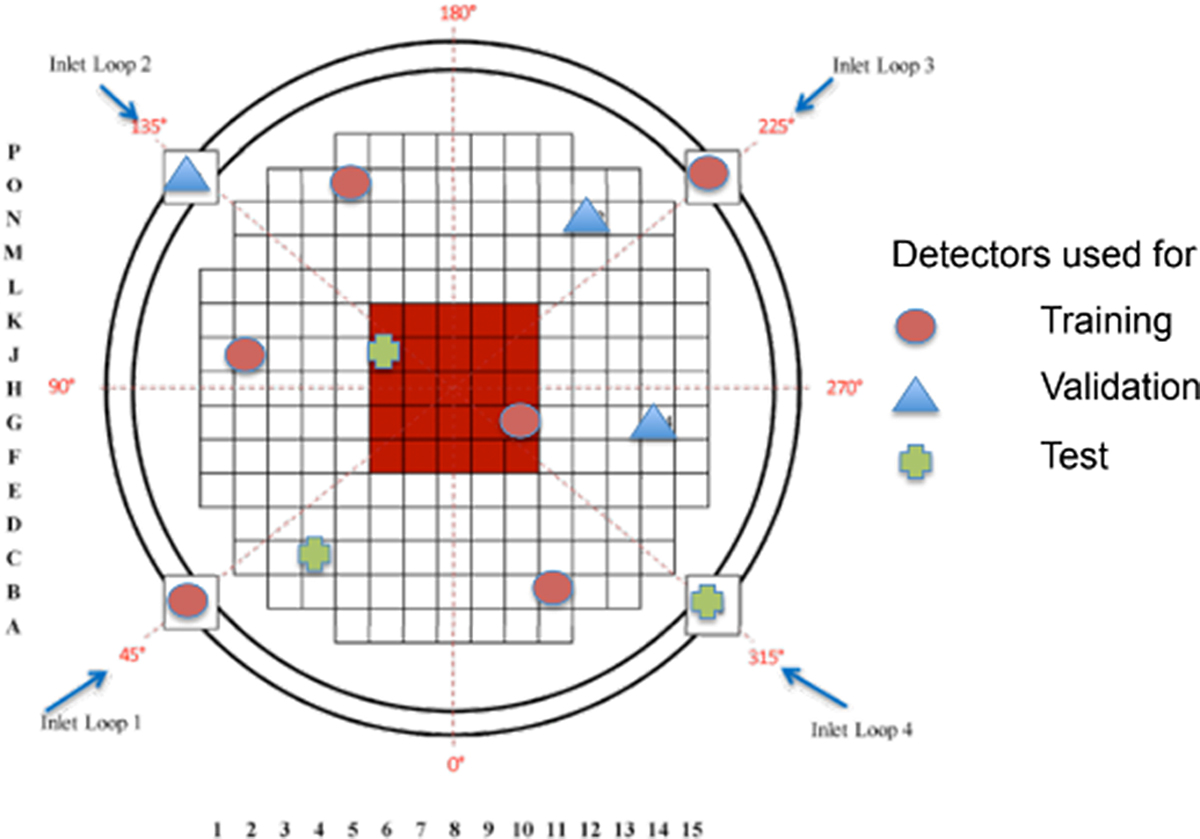

Modelled core layout with 8 in-core and 4 ex-core detector locations shown for one axial plane. Corresponding train, test and validation detector splits shown, with central 5 × 5 FA cluster shown in red.
