Fig. 4


Download original image

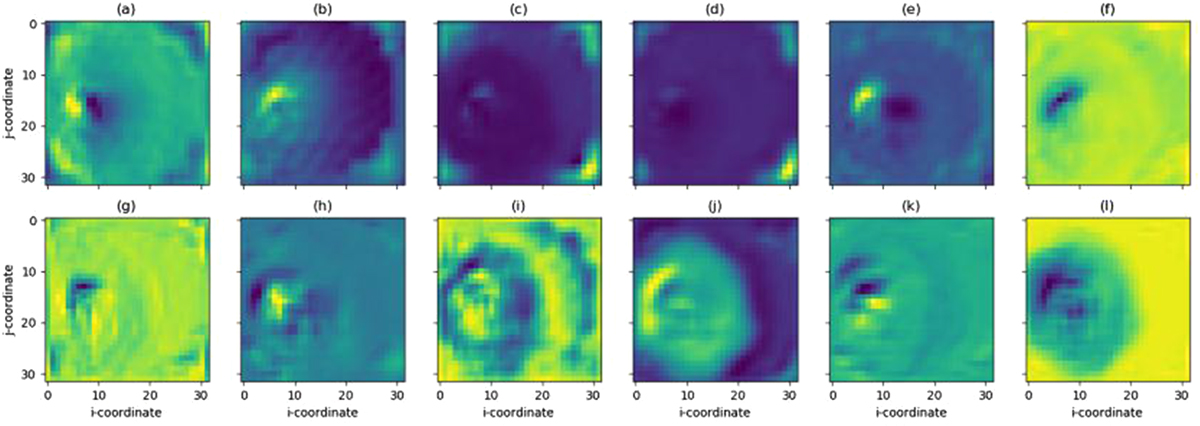

Sample of 12 learnt feature-maps from the output of first dense block for the input of vibrating fuel assembly at (8,16) given all possible detectors. Visually depicting how the differing layers highlight different features of the image. (a) Shows a peak at the source of vibration, (d) the response on the core barrel, (j) the noise dissipating throughout the core.
