Fig. 6


Download original image

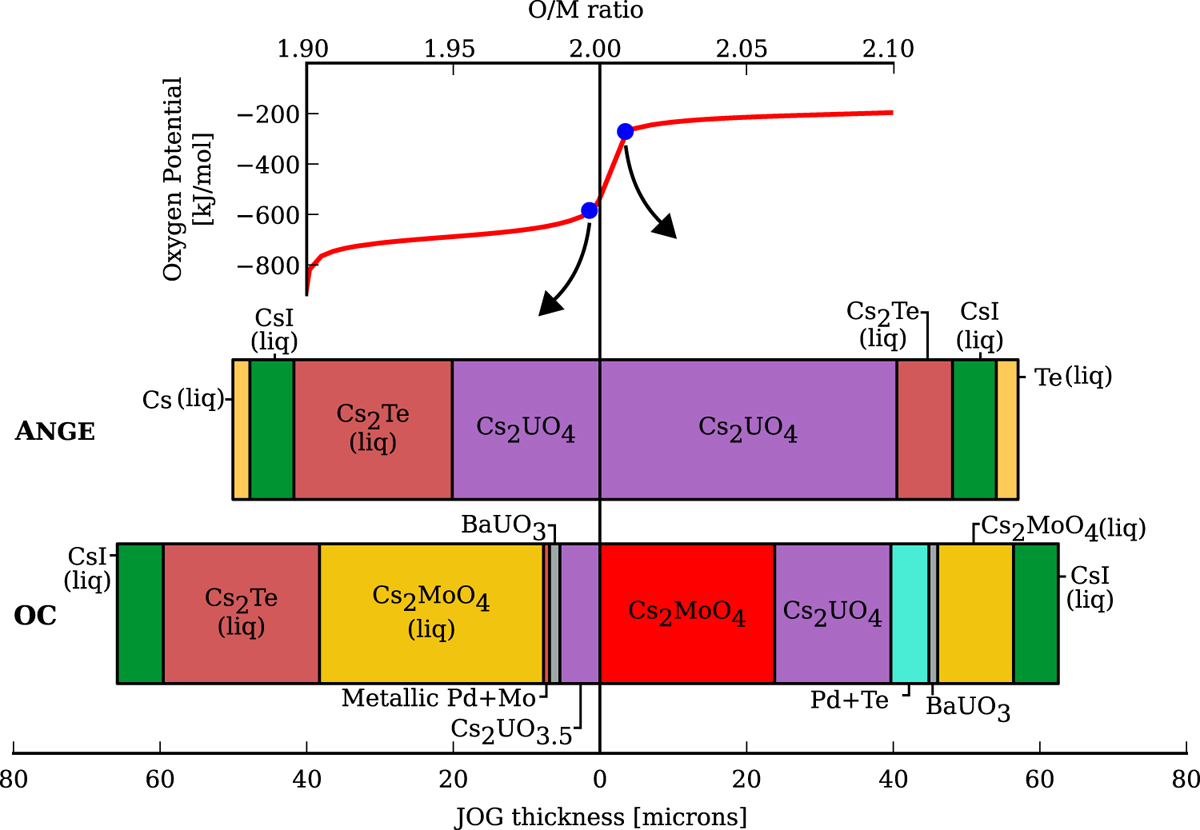

JOG widths for the 13.4 %FIMA fuel pin calculated by OC and ANGE at 1000 K. The left case is just before the oxidation of Mo is complete, and the fluorite O/M ratio is just below 2. In the right case, oxygen amount has been slightly increased so that all Mo is oxidized, and the O/M ratio is just above 2.
