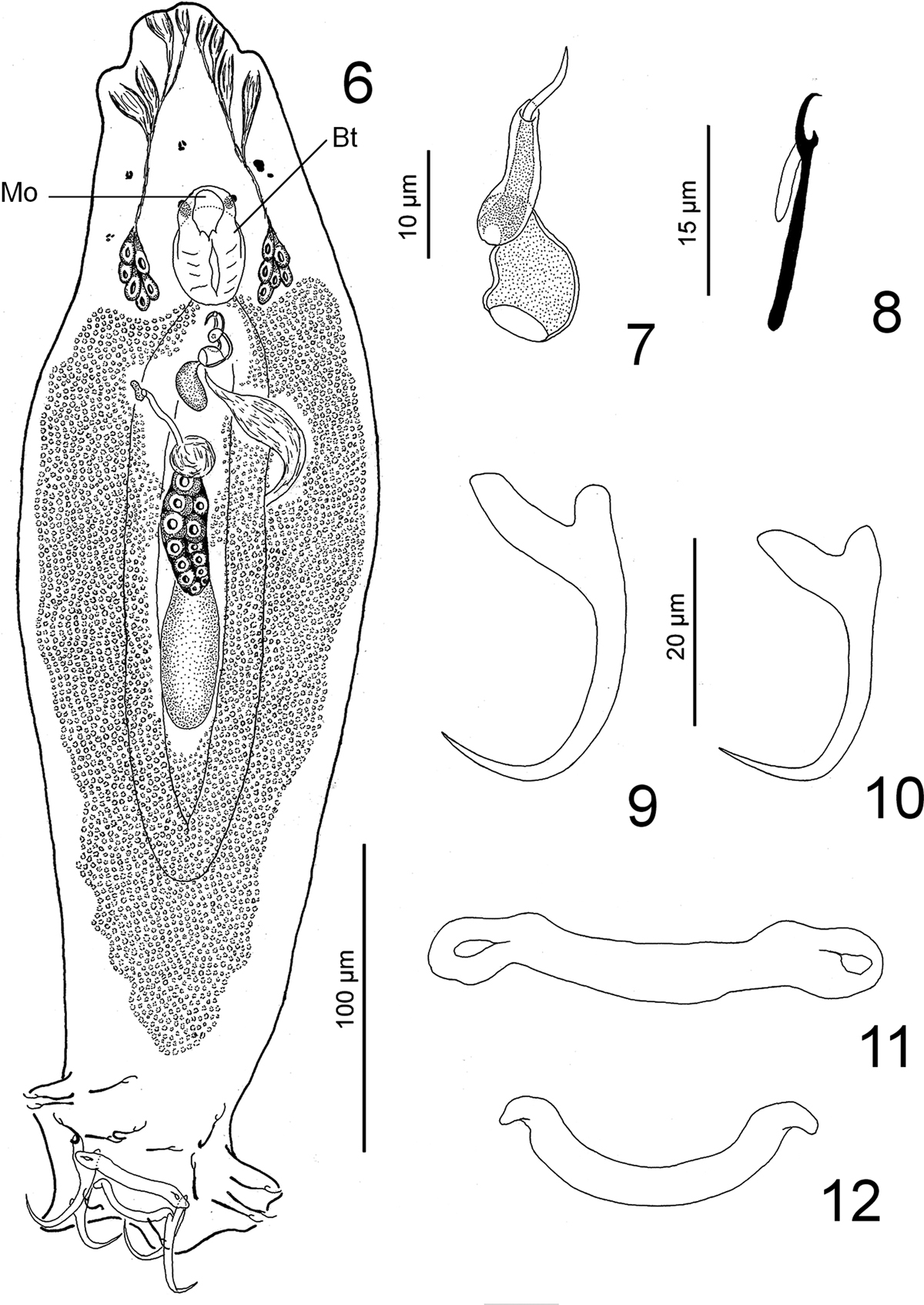

Ancyrocephalus chiapanensis n. sp. from the gills of Strongylura hubbsi. 6: whole-mount (composite, ventral view); 7: copulatory complex; 8: hook; 9: ventral anchor; 10: dorsal anchor; 11: ventral bar; 12: dorsal bar. Figures are drawn to the following scales: 100 μm (Fig. 6), 10 μm (Fig. 7), 15 μm (Fig. 8) and 20 μm (Figs. 9–12).
