Fig. 3


Download original image

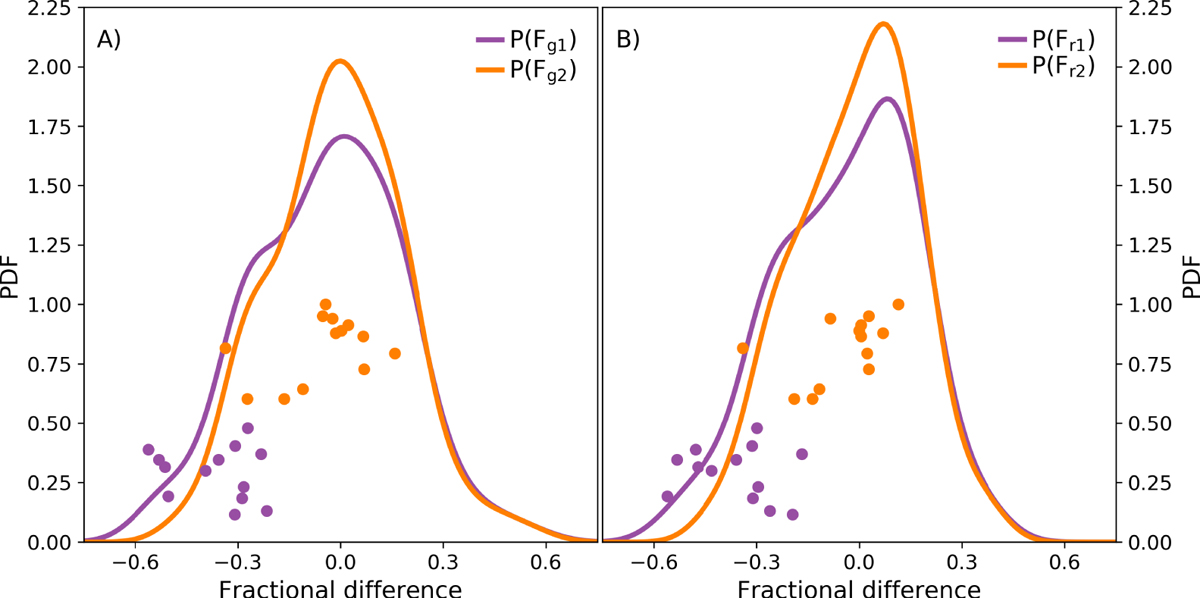

(A) Kernel density estimates of the distributions of fractional differences between Bg with Bc1 and Bc2, Fg1 and Fg2, respectively. The purple and orange dots show the fractional differences in years (McCracken & Beer, 2015) identified as being affected by SEP events (the vertical coordinates of these points is randomised, which otherwise overlap). (B) The same as panel (A), except showing the fractional differences of Br with Bc1 and Bc2.
