System Science: Application to Space Weather Analysis, Modelling, and Forecasting
Open Access
Research Article

Fig. 7


Download original image

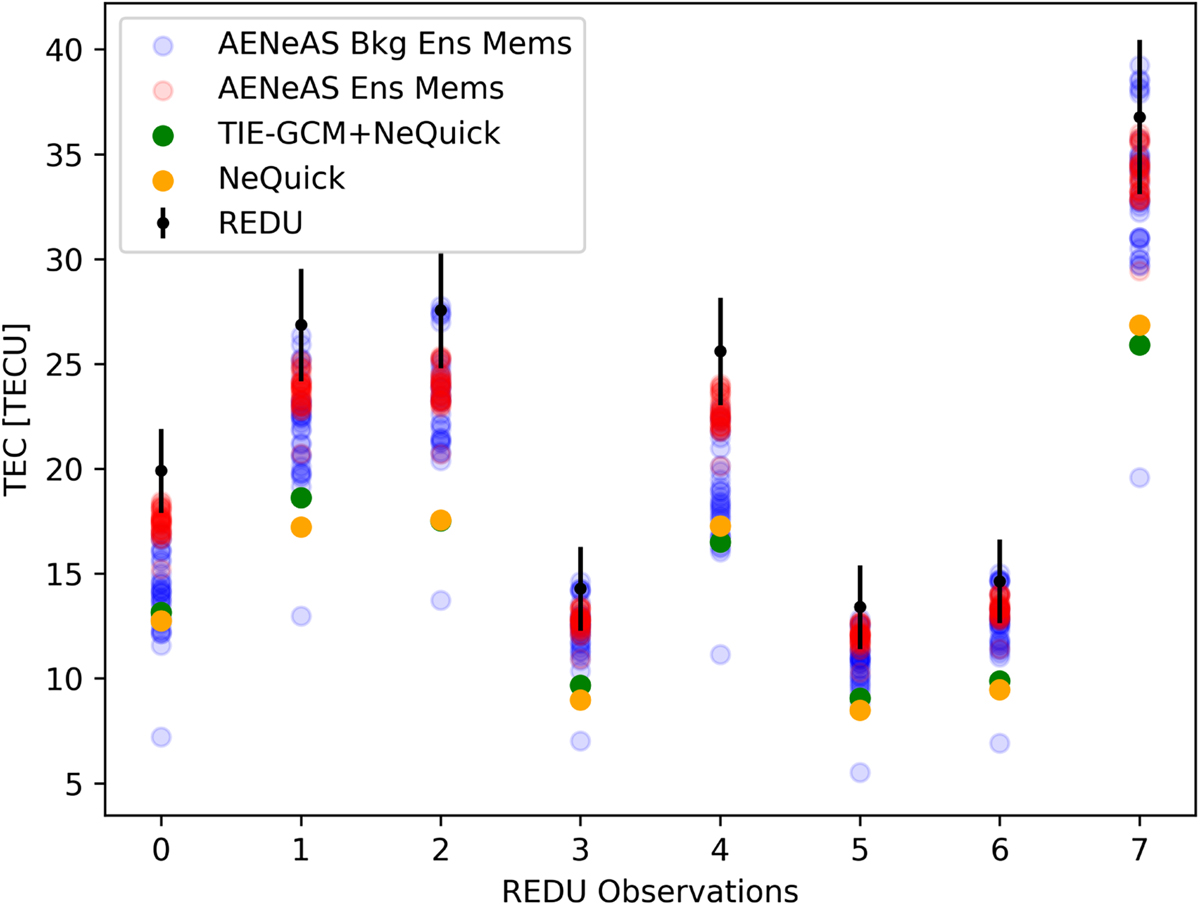

Observed TEC from REDU and the same TEC values modelled by AENeAS, TIE-GCM+ and NeQuick at 1230, 5 June 2017. The x-axis numbering is the receiver channel number and the ordering is arbitrary.
