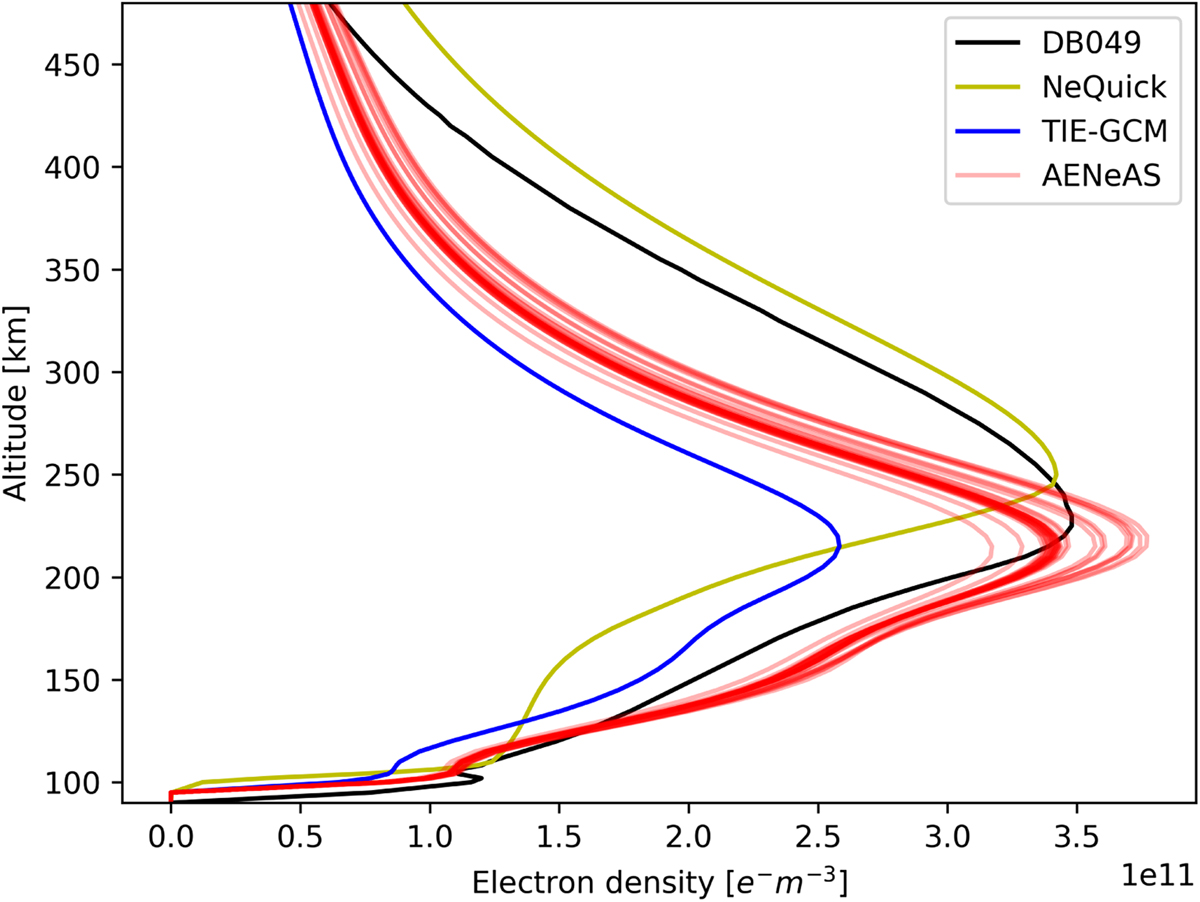

Example electron density profiles. Observed profile (DB049) is from Dourbes, Belgium at 1230, 5 June 2017. Profiles from TIE-GCM, NeQuick and each individual AENeAS member is plotted.
