Research Article

Fig. 7


Download original image

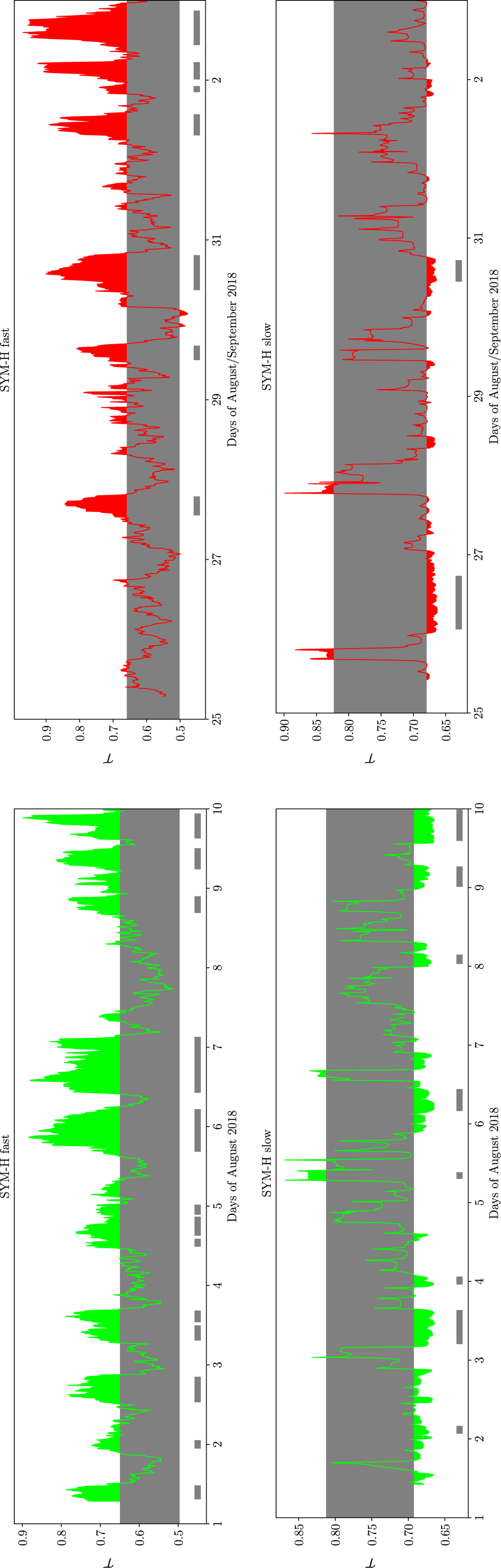

Recurrence network transitivity estimated for sliding windows in time with a width of 200 min for the fast (top) and slow (bottom) SYM-H components as described in the text, using data from the quiet (left, green) and storm period (right, red). The grey horizontal shades indicate the respective ranges of expected values of if 200 state vectors had been randomly drawn from the whole series for generating a recurrence network.
