Topical Issue - Space Weather research in the Digital Age and across the full data lifecycle
Open Access
Research Article

Fig. 13


Download original image

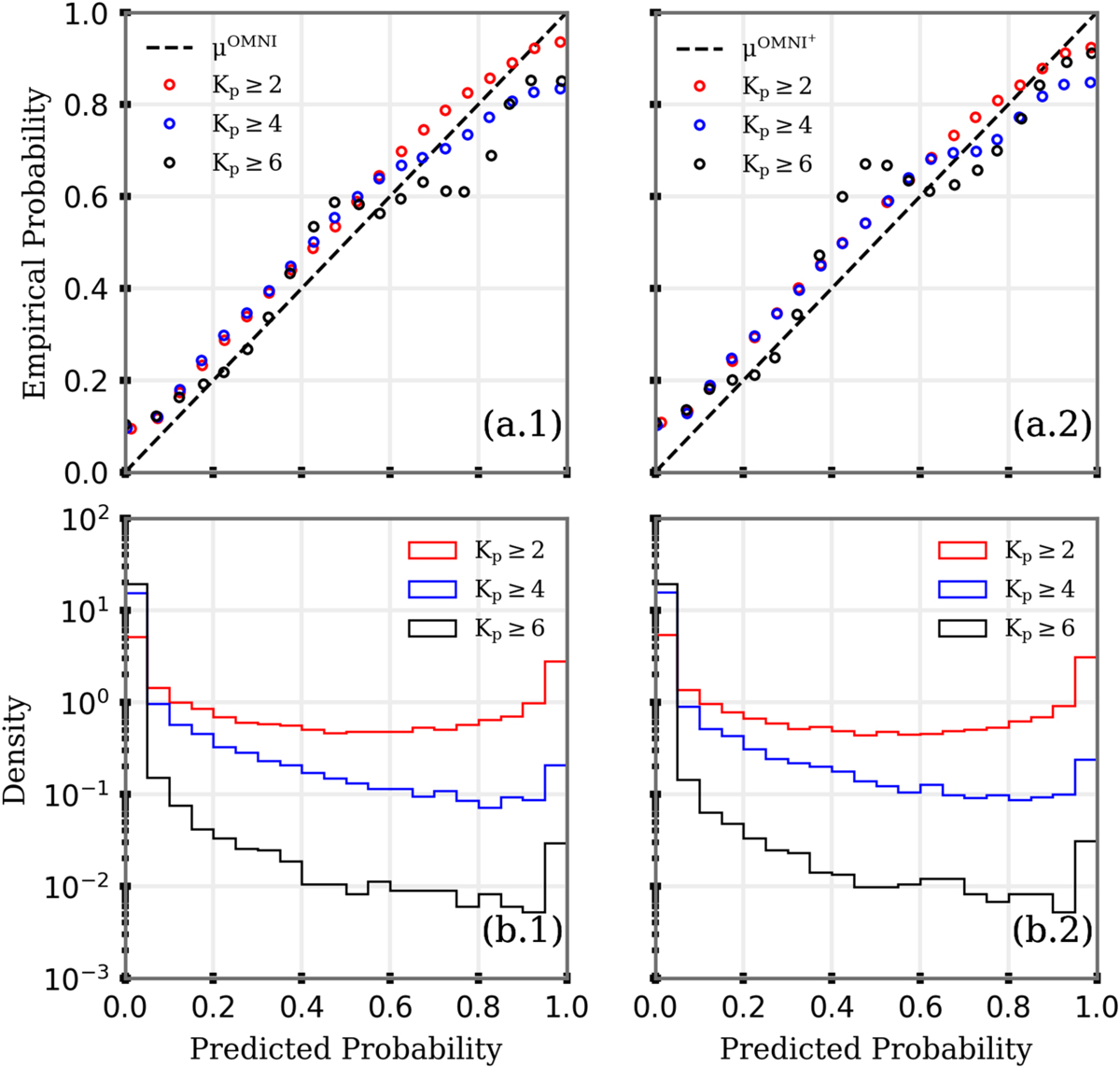

Reliability diagram showing observed frequency of a geomagnetic storm (for K p  ≥ 2,4, and 6) plotted against the forecast probability of geomagnetic storms.
