Topical Issue - Space climate: The past and future of solar activity
Open Access
Research Article

Fig. 1


Download original image

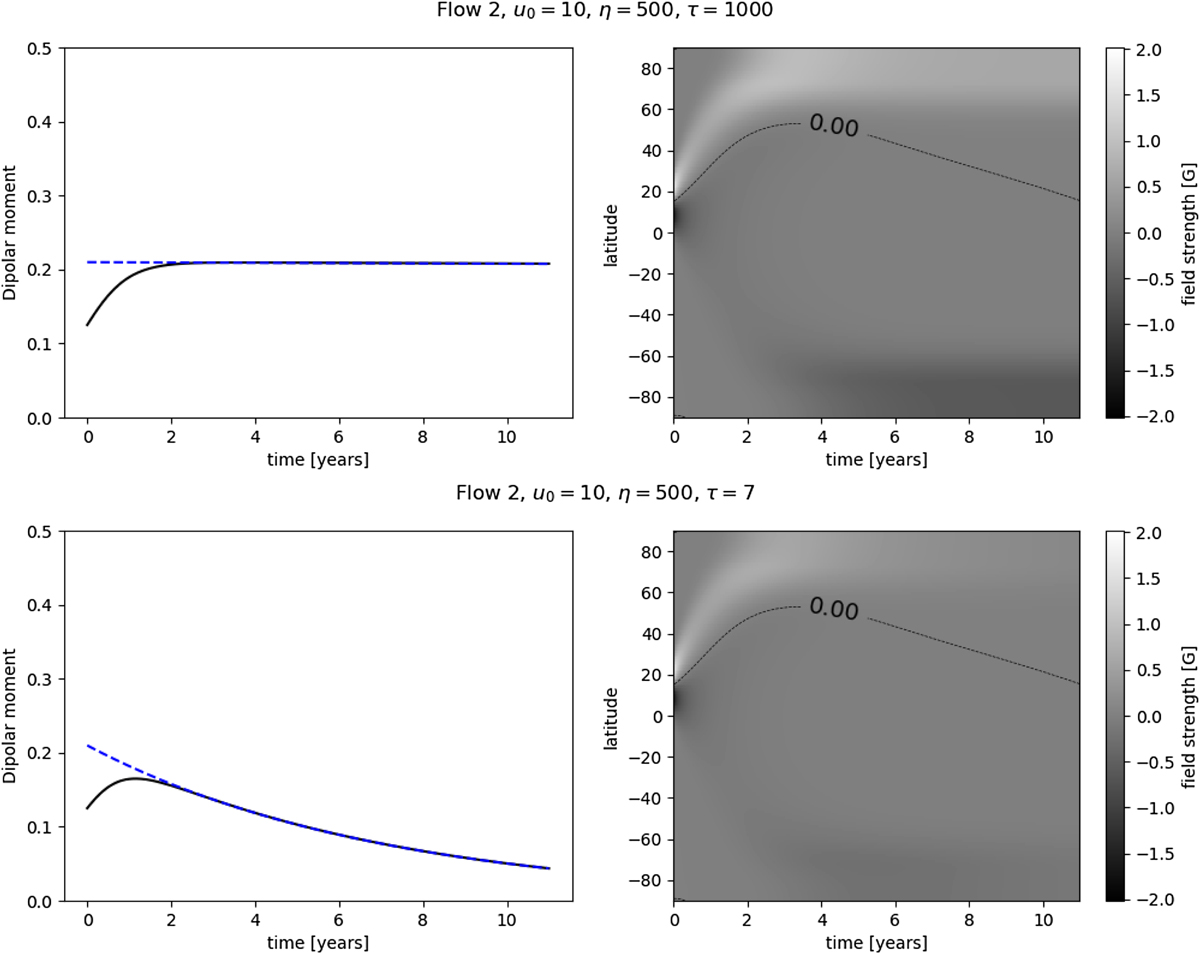

Solutions of the 1D SFT equation with a bipolar source placed at λ0 = +15° latitude at time t = 0. Units of the model parameters shown on top of the rows are m/s, km2/s and year, respectively. The meridional flow profile is given by equation (9). Dashed blue lines in the left-hand plots mark the asymptotic solutions D = δD (top) and D = δDexp(−t/τ) (bottom).
