Topical Issue - Space climate: The past and future of solar activity
Open Access
Research Article

Fig. 5


Download original image

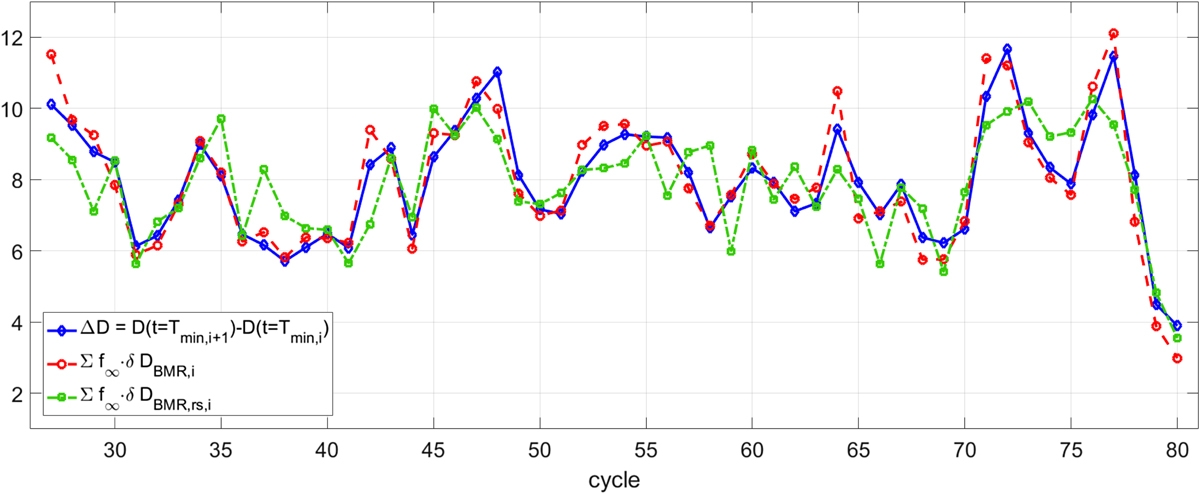

Comparison of total net change in the solar axial dipole moment |Dn+1Dn| in the 2 × 2D dynamo simulation and its approximations with the algebraic method in a segment of 80 cycles. Plotted are absolute values of the quantities shown in the legend. See text for further explanations.
